GVCP (GigE Vision Control Protocol)
Table of contents
Overview
GVCP (GigE Vision Control Protocol) is a UDP-based protocol used to discover and control GigE Vision cameras over Ethernet, typically on port 3956. Developed by the Automated Imaging Association (AIA), it enables tasks like device discovery, IP configuration, and register access in machine vision systems.

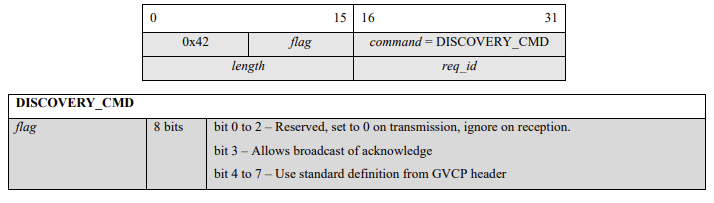

DISCOVERY_CMD
struct gvcp_cmd_header{
uint8 cMsgKeyCode; // 0x42
uint8 cFlag; // 0x11 allow broadcast ack;ack required
uint16 wCmd; // discovery_cmd=2;FORCEIP_CMD = 4;READREG_CMD=0x80
uint16 wLen; // payload length
uint16 wReqID; // request id = 1;READREG id=12345
};
DISCOVERY_ACK
struct gvcp_ack_header{
uint16 wStatus; //success=0;
uint16 wAck; //discover_ack=3;forceip_ack=5;READREG_ACK=0x81
uint16 wLen;
uint16 wReqID;
};
struct gvcp_ack_payload{
uint32 dwSpecVer;
uint32 dwDevMode;
uint8 Mac[8]; //last 6 byte
uint32 dwSupIpSet;
uint32 dwCurIpSet;
//uint8 unused1[12];
uint8 CurIP[16]; //last 4 byte
uint8 SubMask[16]; //last 4 byte
uint8 Gateway[16]; //last 4 byte
char szFacName[32]; //first
char szModelName[32]; //first
char szDevVer[32];
char szFacInfo[48];
char szSerial[16];
char szUserName[16];
};
Hex dump
Simulated response
GigE Vision Control Protocol
Acknowledge Header: DISCOVERY_ACK
Status: GEV_STATUS_SUCCESS (0x0000)
Acknowledge: DISCOVERY_ACK (0x0003)
Payload Length: 0x00f8 (248)
Request ID: 0x0001 (1)
[Request In: 1]
DISCOVERY_ACK Payload
Spec Version: 0x01000100
Device Mode: 0x00000001
Device MAC Address: 2b:3c:4d:5e:00:00 (2b:3c:4d:5e:00:00)
Supported IP Configuration: 0x00000007
Current IP Configuration: 0x00000001
Current IP: 192.168.1.100
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.1
Manufacturer Name: MyCompany
Model Name: GVCPDevice
Device Version: v1.0
Manufacturer Specific Info: Manufactured by MyCompany Inc.
Serial Number: SN12345678
User-defined Name: admin
0000 00 00 00 03 00 f8 00 01 01 00 01 00 00 00 00 01 ................
0010 00 1a 2b 3c 4d 5e 00 00 00 00 00 07 00 00 00 01 ..+<M^..........
0020 00 00 00 00 00 00 00 00 00 00 00 00 c0 a8 01 64 ...............d
0030 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff 00 ................
0040 00 00 00 00 00 00 00 00 00 00 00 00 c0 a8 01 01 ................
0050 4d 79 43 6f 6d 70 61 6e 79 00 00 00 00 00 00 00 MyCompany.......
0060 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0070 47 56 43 50 44 65 76 69 63 65 00 00 00 00 00 00 GVCPDevice......
0080 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0090 76 31 2e 30 00 00 00 00 00 00 00 00 00 00 00 00 v1.0............
00a0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00b0 4d 61 6e 75 66 61 63 74 75 72 65 64 20 62 79 20 Manufactured by
00c0 4d 79 43 6f 6d 70 61 6e 79 20 49 6e 63 2e 00 00 MyCompany Inc...
00d0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00e0 53 4e 31 32 33 34 35 36 37 38 00 00 00 00 00 00 SN12345678......
00f0 61 64 6d 69 6e 00 00 00 00 00 00 00 00 00 00 00 admin...........
Real response
GigE Vision Control Protocol
Acknowledge Header: DISCOVERY_ACK
Status: GEV_STATUS_SUCCESS (0x0000)
Acknowledge: DISCOVERY_ACK (0x0003)
Payload Length: 0x00f8 (248)
Request ID: 0x0001 (1)
DISCOVERY_ACK Payload
Spec Version: 0x00020001
Device Mode: 0x80000001
Device MAC Address: Keyence_XX:XX:XX (XX:XX:XX:XX:XX:XX)
Supported IP Configuration: 0x00000007
Current IP Configuration: 0x00000007
Current IP: 10.9.2.29
Subnet Mask: 255.255.255.0
Default Gateway: 10.9.2.254
Manufacturer Name: KEYENCE CORPORATION
Model Name: VS-L500MX
Device Version: 1.5.0004
Manufacturer Specific Info:
Serial Number: XXXXXXXXXX
User-defined Name: M202OP110_Split
0000 00 00 00 03 00 f8 00 01 00 02 00 01 80 00 00 01 ................
0010 00 00 XX XX XX XX XX XX 00 00 00 07 00 00 00 07 ......r.........
0020 00 00 00 00 00 00 00 00 00 00 00 00 0a 09 02 1d ................
0030 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff 00 ................
0040 00 00 00 00 00 00 00 00 00 00 00 00 0a 09 02 fe ................
0050 4b 45 59 45 4e 43 45 20 43 4f 52 50 4f 52 41 54 KEYENCE CORPORAT
0060 49 4f 4e 00 00 00 00 00 00 00 00 00 00 00 00 00 ION.............
0070 56 53 2d 4c 35 30 30 4d 58 00 00 00 00 00 00 00 VS-L500MX.......
0080 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0090 31 2e 35 2e 30 30 30 34 00 00 00 00 00 00 00 00 1.5.0004........
00a0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00b0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00c0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00d0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00e0 XX XX XX XX XX XX XX XX XX XX 00 00 00 00 00 00 XXXXXXXXXX......
00f0 4d 32 30 32 4f 50 31 31 30 5f 53 70 6c 69 74 00 M202OP110_Split.
Python server/client implementation
python3 gvcp_client_server.py --server
python3 gvcp_client_server.py --client --ip 127.0.0.1
import socket
import struct
import argparse
GVCP_DISCOVERY_CMD = 0x0002
GVCP_DISCOVERY_ACK = 0x0003
def build_gvcp_ack(req_id):
# Header
wStatus = 0
wAck = GVCP_DISCOVERY_ACK
wLen = 0 # will be calculated after payload
wReqID = req_id
# Payload mock values
dwSpecVer = 0x01000100
dwDevMode = 0x00000001
mac = bytes([0x00, 0x1A, 0x2B, 0x3C, 0x4D, 0x5E]) + bytes([0, 0]) # 8 bytes
dwSupIpSet = 0x00000007
dwCurIpSet = 0x00000001
def padded_ip(ip):
b = socket.inet_aton(ip)
return b.rjust(16, b'\x00')
CurIP = padded_ip("192.168.1.100")
SubMask = padded_ip("255.255.255.0")
Gateway = padded_ip("192.168.1.1")
def padded_str(s, size):
return s.encode('ascii').ljust(size, b'\x00')
szFacName = padded_str("MyCompany", 32)
szModelName = padded_str("GVCPDevice", 32)
szDevVer = padded_str("v1.0", 32)
szFacInfo = padded_str("Manufactured by MyCompany Inc.", 48)
szSerial = padded_str("SN12345678", 16)
szUserName = padded_str("admin", 16)
payload = struct.pack(
"!II8sII16s16s16s32s32s32s48s16s16s",
dwSpecVer,
dwDevMode,
mac,
dwSupIpSet,
dwCurIpSet,
CurIP,
SubMask,
Gateway,
szFacName,
szModelName,
szDevVer,
szFacInfo,
szSerial,
szUserName
)
wLen = len(payload)
header = struct.pack("!HHHH", wStatus, wAck, wLen, wReqID)
return header + payload
def run_server(listen_port):
sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
sock.bind(("", listen_port))
print(f"Server listening on UDP port {listen_port}")
while True:
data, addr = sock.recvfrom(1024)
print(f"\nReceived {len(data)} bytes from {addr}")
print("Raw data:", data.hex())
if len(data) >= 8:
cMsgKeyCode, cFlag, wCmd, wLen, wReqID = struct.unpack("!BBHHH", data[:8])
print("GVCP Header:")
print(f" MsgKeyCode: 0x{cMsgKeyCode:02X}")
print(f" Flag: 0x{cFlag:02X}")
print(f" Cmd: 0x{wCmd:04X}")
print(f" Length: {wLen}")
print(f" ReqID: {wReqID}")
if wCmd == GVCP_DISCOVERY_CMD:
print(">> Discovery command received. Sending ACK.")
response = build_gvcp_ack(wReqID)
sock.sendto(response, addr)
print(">> ACK sent.\n")
def send_gvcp_discovery(target_ip, target_port):
cMsgKeyCode = 0x42
cFlag = 0x11
wCmd = GVCP_DISCOVERY_CMD
wLen = 0
wReqID = 1
packet = struct.pack("!BBHHH", cMsgKeyCode, cFlag, wCmd, wLen, wReqID)
sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
sock.setsockopt(socket.SOL_SOCKET, socket.SO_BROADCAST, 1)
sock.settimeout(2.0)
sock.sendto(packet, (target_ip, target_port))
print(f"Sent GVCP Discovery to {target_ip}:{target_port}")
try:
data, addr = sock.recvfrom(2048)
print(f"\nReceived response from {addr}")
print(data.hex())
except socket.timeout:
print("No response received (timeout)")
sock.close()
if __name__ == "__main__":
parser = argparse.ArgumentParser()
mode = parser.add_mutually_exclusive_group(required=True)
mode.add_argument("--client", action="store_true", help="Run as GVCP client")
mode.add_argument("--server", action="store_true", help="Run as GVCP server")
parser.add_argument("--ip", help="Target IP address (required for client)")
parser.add_argument("--port", type=int, default=3956, help="Port to listen or send")
args = parser.parse_args()
if args.client:
if not args.ip:
print("Error: --ip is required in client mode")
else:
send_gvcp_discovery(args.ip, args.port)
elif args.server:
run_server(args.port)
Reference
GigE Vision Specification
https://github.com/BigSensor/GvcpServer/tree/main
GVCP Wireshark Dissector
