BJNP
Table of contents
Overview
Canon BJNP is a proprietary network printing protocol developed by Canon for communication between Canon printers and computers or mobile devices over a network. It operates over TCP and UDP, typically using port 8611 for scanning, 8612 for printing, and 8613 for device discovery. BJNP facilitates discovery, printing, and scanning functions, enabling Canon printers to work seamlessly over LAN or wireless connections without standard IPP or LPD protocols. It’s primarily used in consumer-grade Canon multifunction printers.

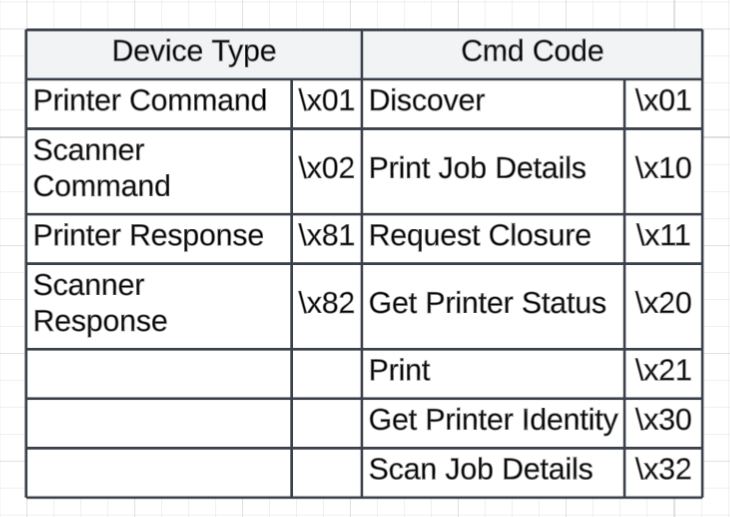

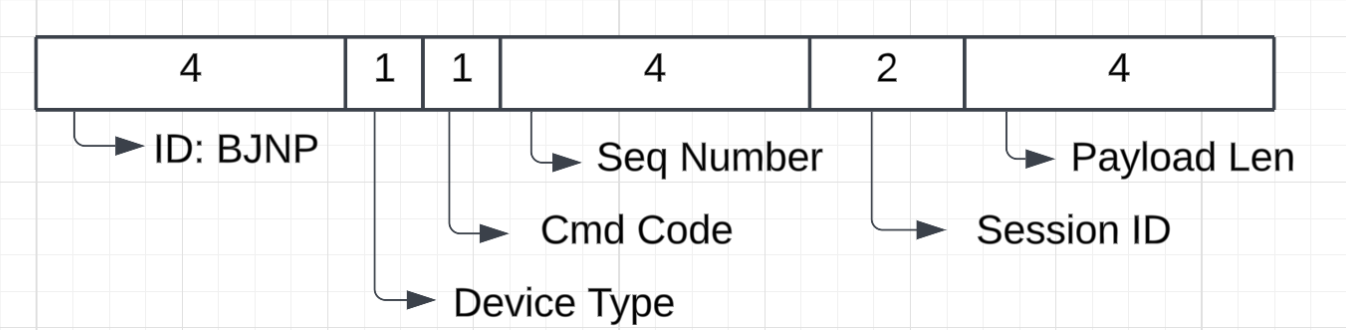

Protocol Strucutre / Field Type
Discovery Request / Response
echo -n 'BJNP\x01\x30\x00\x00\x00\x01\x00\x00\x00\x00\x00\x00' | netcat -u XXX.XXX.XXX.XXX 8611
# Reqeust
0000 42 4a 4e 50 01 30 00 00 00 01 00 00 00 00 00 00 BJNP.0..........
# Response
0000 42 4a 4e 50 81 30 00 00 00 01 00 00 00 00 00 f2 BJNP.0..........
0010 00 f2 4d 46 47 3a 43 61 6e 6f 6e 3b 43 4d 44 3a ..MFG:Canon;CMD:
0020 42 4a 4c 2c 42 4a 52 61 73 74 65 72 33 2c 42 53 BJL,BJRaster3,BS
0030 43 43 65 2c 4e 43 43 65 2c 49 56 45 43 2c 49 56 CCe,NCCe,IVEC,IV
0040 45 43 50 4c 49 3b 53 4f 4a 3a 42 4a 4e 50 32 2c ECPLI;SOJ:BJNP2,
0050 42 4a 4e 50 65 3b 4d 44 4c 3a 4d 47 35 35 30 30 BJNPe;MDL:MG5500
0060 20 73 65 72 69 65 73 3b 43 4c 53 3a 50 52 49 4e series;CLS:PRIN
0070 54 45 52 3b 44 45 53 3a 43 61 6e 6f 6e 20 4d 47 TER;DES:Canon MG
0080 35 35 30 30 20 73 65 72 69 65 73 3b 56 45 52 3a 5500 series;VER:
0090 33 2e 30 39 30 3b 53 54 41 3a 31 30 3b 46 53 49 3.090;STA:10;FSI
00a0 3a 30 30 3b 48 52 49 3a 32 3b 4d 53 49 3a 41 4f :00;HRI:2;MSI:AO
00b0 46 46 2c 42 32 34 30 2c 44 41 54 2c 45 33 2c 48 FF,B240,DAT,E3,H
00c0 46 53 46 2c 4a 4f 46 46 2c 4b 32 31 30 30 30 37 FSF,JOFF,K210007
00d0 30 30 2c 4c 4f 46 46 3b 50 44 52 3a 33 3b 50 53 00,LOFF;PDR:3;PS
00e0 45 3a XX XX XX XX XX XX XX XX XX 3b 43 49 44 3a E:XXXXXXXXX;CID:
00f0 43 41 5f 49 56 45 43 31 54 59 50 45 34 5f 49 4a CA_IVEC1TYPE4_IJ
0100 50 3b P;
Reference
BJNP Wireshark Dissector Github
IANA search=bjnp
NMAP bjnp-discover
