PROFINET DCP (Discovery and Configuration Protocol)

Table of contents

  1. Overview
  2. Basic Structure
  3. Device Identification
  4. Reference

Overview

The Discovery and Configuration Protocol (DCP) for Profinet is a link layer protocol that’s part of the Profinet protocol suite. It’s used to configure device settings, identify device information, and discover devices on a Profinet network

Basic Structure

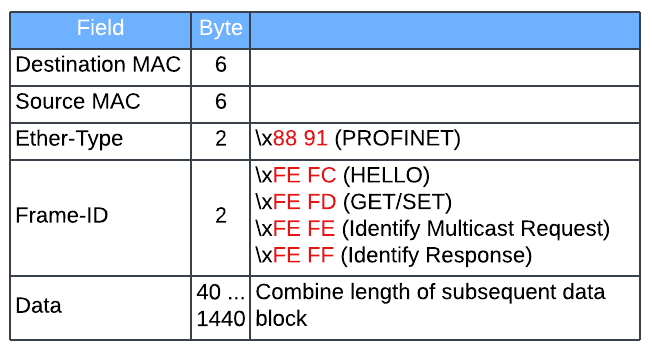

PROFINET Real-Time Ethernet frame

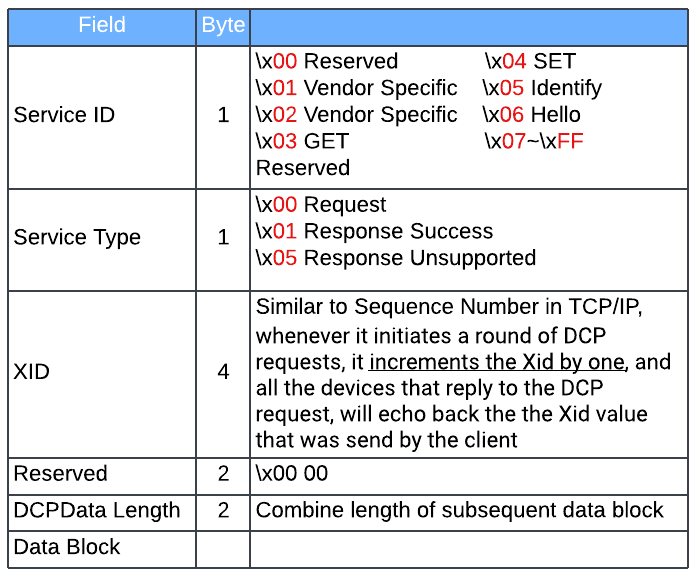

PROFINET DCP PDU

PDU Data Block

Device Identification

VendorID can be used to identify manufacturer, list of vendor ID can be found at Man_ID_Table.xml
For Siemens device, the DeviceID has the format (DeviceClass/DeviceFamily)

# Sample Wireshark Dissector Info, 002a is vendor ID for Siemens AG
Block: Device/Device ID, BlockInfo: Reserved, VendorID: 0x002a / DeviceID: 0x0301
    Option: Device properties (2)
    Suboption: Device ID (3)
    DCPBlockLength: 6
    BlockInfo: Reserved (0)
    VendorID: 0x002a
    DeviceID: 0x0301

Device Role signifing the type of device (e.g. ‘IO-Controller’)

Block: Device/Device Role, BlockInfo: Reserved, IO-Device
    Option: Device properties (2)
    Suboption: Device Role (4)
    DCPBlockLength: 4
    BlockInfo: Reserved (0)
    DeviceRoleDetails: 0x01
    Reserved: 0

For manufacturer specifc device ID, find the device relavent GSD file from PI’s product finder. The XML file should contains the value for identifying specfic product
Below sample is part of the GSD file for Siemens’ SINAMICS G120D

<ProfileBody>
		<DeviceIdentity VendorID="0x002A" DeviceID="0x0507">
			<InfoText TextId="IDT_FamilyDescription"/>
			<VendorName Value="Siemens AG"/>

Reference

https://github.com/boundary/wireshark/blob/master/plugins/profinet/packet-pn.h
https://github.com/boundary/wireshark/blob/master/plugins/profinet/packet-pn.c
https://github.com/boundary/wireshark/blob/master/plugins/profinet/packet-pn-dcp.c
https://us.profinet.com/profinet-network-geeks-want/
